NAME
form_driver, form_driver_w - command-processing loop of the form system
SYNOPSIS
#include
<form.h>
int form_driver(FORM *form, int
c);
int form_driver_w(FORM *form, int
c, wchar_t wch);
DESCRIPTION
form_driver
Once a form has been posted (displayed), you should funnel
input events to it through form_driver. This routine
has three major input cases:
|
• |
The input is a form navigation request. Navigation request codes are constants defined in <form.h>, which are distinct from the key- and character codes returned by wgetch(3X). | ||
|
• |
The input is a printable character. Printable characters (which must be positive, less than 256) are checked according to the program’s locale settings. | ||
|
• |
The input is the KEY_MOUSE special key associated with an mouse event. |
form_driver_w
This extension simplifies the use of the forms library using
wide characters. The input is either a key code (a request)
or a wide character returned by get_wch(3X). The type
must be passed as well, to enable the library to determine
whether the parameter is a wide character or a request.
Form-driver
requests

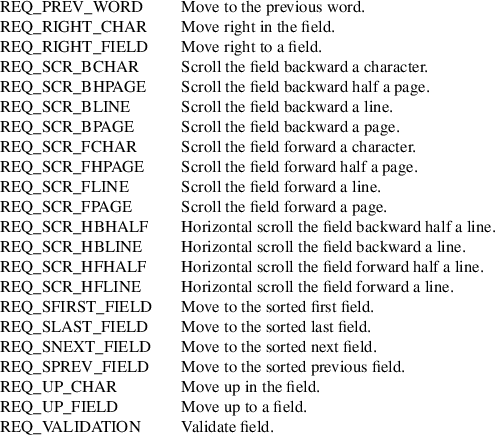

The form driver requests are as follows:
If the second argument is a printable character, the driver places it in the current position in the current field. If it is one of the forms requests listed above, that request is executed.
Field
validation
The form library makes updates to the window associated with
form fields rather than directly to the field buffers.
The form driver provides low-level control over updates to the form fields. The form driver also provides for validating modified fields to ensure that the contents meet whatever constraints an application may attach using set_field_type.
You can validate a field without making any changes to it using REQ_VALIDATION. The form driver also validates a field in these cases:
|
• |
a call to set_current_field attempts to move to a different field. | ||
|
• |
a call to set_current_page attempts to move to a different page of the form. | ||
|
• |
a request attempts to move to a different field. | ||
|
• |
a request attempts to move to a different page of the form. |
In each case, the move fails if the field is invalid.
If the modified field is valid, the form driver copies the modified data from the window associated with the field to the field buffer.
Mouse
handling
If the second argument is the KEY_MOUSE special key, the
associated mouse event is translated into one of the above
pre-defined requests. Currently only clicks in the user
window (e.g., inside the form display area or the decoration
window) are handled.
If you click above the display region of the form:
a REQ_PREV_FIELD is generated
for a single click,
a REQ_PREV_PAGE is generated for a double-click and
a REQ_FIRST_FIELD is generated for a triple-click.
If you click below the display region of the form:
a REQ_NEXT_FIELD is generated
for a single click,
a REQ_NEXT_PAGE is generated for a double-click and
a REQ_LAST_FIELD is generated for a triple-click.
If you click at an field inside the display area of the form:
|
• |
the form cursor is positioned to that field. | ||
|
• |
If you double-click a field, the form cursor is positioned to that field and E_UNKNOWN_COMMAND is returned. This return value makes sense, because a double click usually means that an field-specific action should be returned. It is exactly the purpose of this return value to signal that an application specific command should be executed. | ||
|
• |
If a translation into a request was done, form_driver returns the result of this request. |
If you clicked outside the user window or the mouse event could not be translated into a form request an E_REQUEST_DENIED is returned.
Application-defined
commands
If the second argument is neither printable nor one of the
above pre-defined form requests, the driver assumes it is an
application-specific command and returns
E_UNKNOWN_COMMAND. Application-defined commands
should be defined relative to MAX_COMMAND, the
maximum value of these pre-defined requests.
RETURN VALUE
form_driver returns one of the following error codes:
|
E_OK |
The routine succeeded. |
E_BAD_ARGUMENT
Routine detected an incorrect or out-of-range argument.
E_BAD_STATE
Routine was called from an initialization or termination function.
E_NOT_POSTED
The form has not been posted.
E_INVALID_FIELD
Contents of field is invalid.
E_NOT_CONNECTED
No fields are connected to the form.
E_REQUEST_DENIED
The form driver could not process the request.
E_SYSTEM_ERROR
System error occurred (see errno(3)).
E_UNKNOWN_COMMAND
The form driver code saw an unknown request code.
SEE ALSO
ncurses(3NCURSES), form(3FORM), field_buffer(3FORM), field_validation(3FORM), fieldtype(3FORM), form_variables(3FORM), getch(3X).
NOTES
The header file <form.h> automatically includes the header files <curses.h>.
PORTABILITY
These routines emulate the System V forms library. They were not supported on Version 7 or BSD versions.
AUTHORS
Juergen Pfeifer. Manual pages and adaptation for new curses by Eric S. Raymond.
